Heat Exchanger: NEW Doyle & Roth Heat Exchanger 100 PSI 20 Deg. F Shell & Stainless SS Tube

NEW Doyle & Roth Heat Exchanger 100 PSI 20 Deg. F Shell & Stainless SS Tube

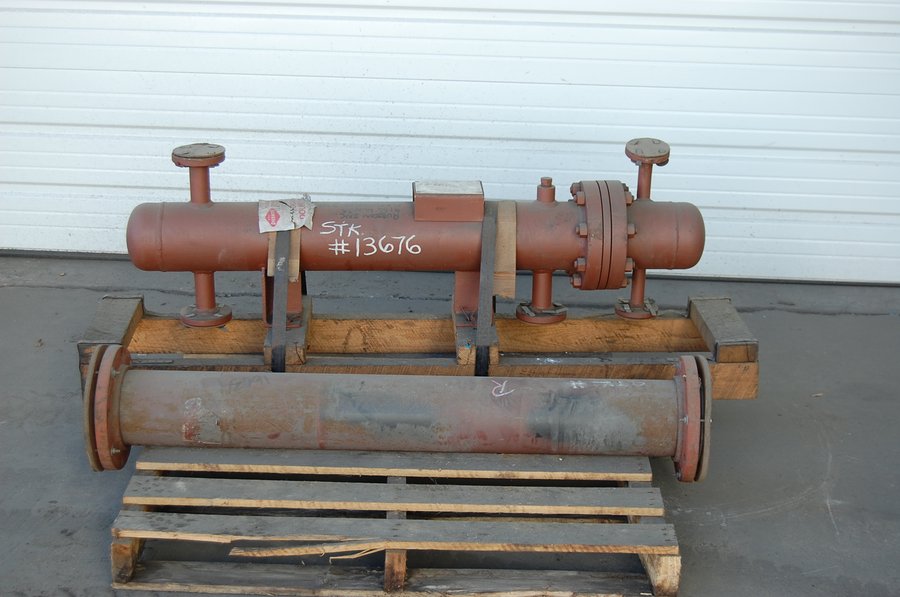

image for: NEW Doyle & Roth Heat Exchanger 100 PSI 20 Deg. F Shell & Stainless SS Tube

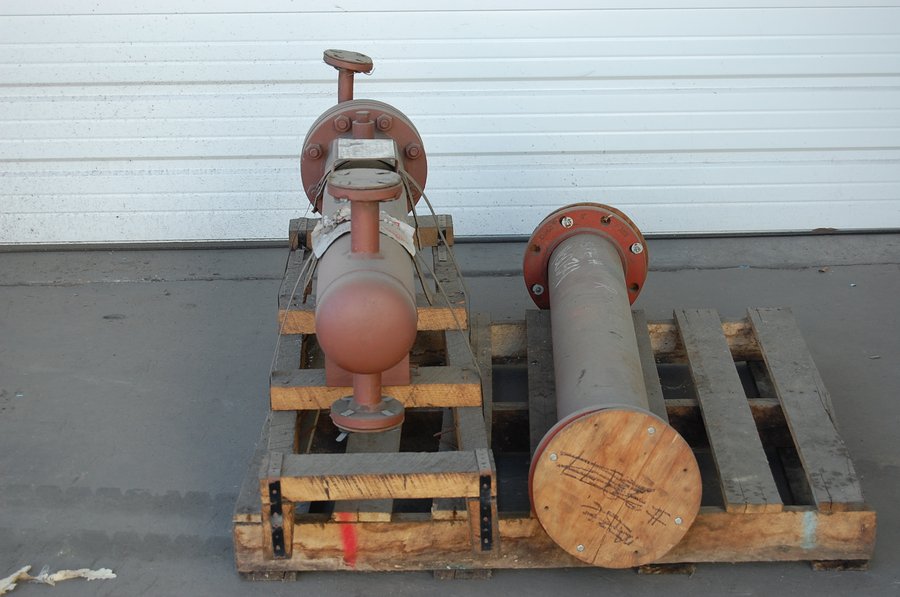

image for: NEW Doyle & Roth Heat Exchanger 100 PSI 20 Deg. F Shell & Stainless SS Tube

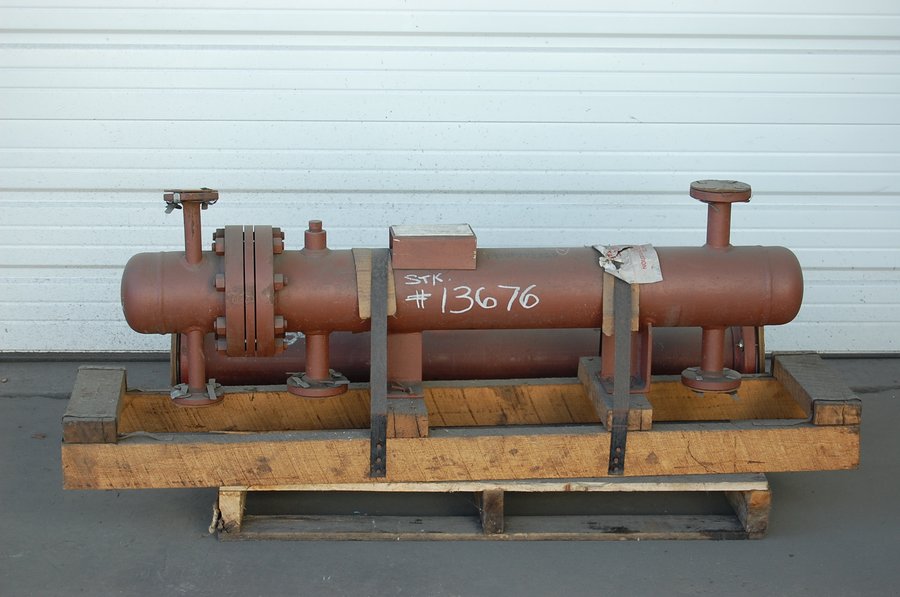

image for: NEW Doyle & Roth Heat Exchanger 100 PSI 20 Deg. F Shell & Stainless SS Tube

Product Notes

Serial # J7512

MAWP-Shell 100 PSI @ 450 Degrees F
MDMT-Shell -20 Degrees F @ 100 PSI
MAWP- Tube 100 PSI @ 450 Degrees F
MDMT- Tube - 20 Degrees F @ 100 PSI

DWG # B6447-2

**National Board Info upon request**

HEW6221000260
Add this item to your quote cart to get a prompt estimate and additional information.

Category Heat Exchanger
Manufacturer Doyle & Roth MFG. Co, Inc.
Condition New Surplus
Serial # J7512
Yr. Built 1994
Overall Length 55"
V/H H
Shell Material Carbon Steel
Shell PSI 100 PSI @ 450 Deg. F
Shell Temp -20 Deg. @ 100 PSI
Shell Dia. 7"
Tube PSI 100 PSI 2 450 Deg. F
Tube Temp -20 Deg. @ 100 PSI
Tube Length 44"
Head Material Carbon Steel
Tube Openings (size) 2 @ 1" Flg
Shell Openings (size) 3 @ 1.5" Flg. 1 @ 1" Thr
